AC & DC LOAD BANKS
For Standby Power Systems

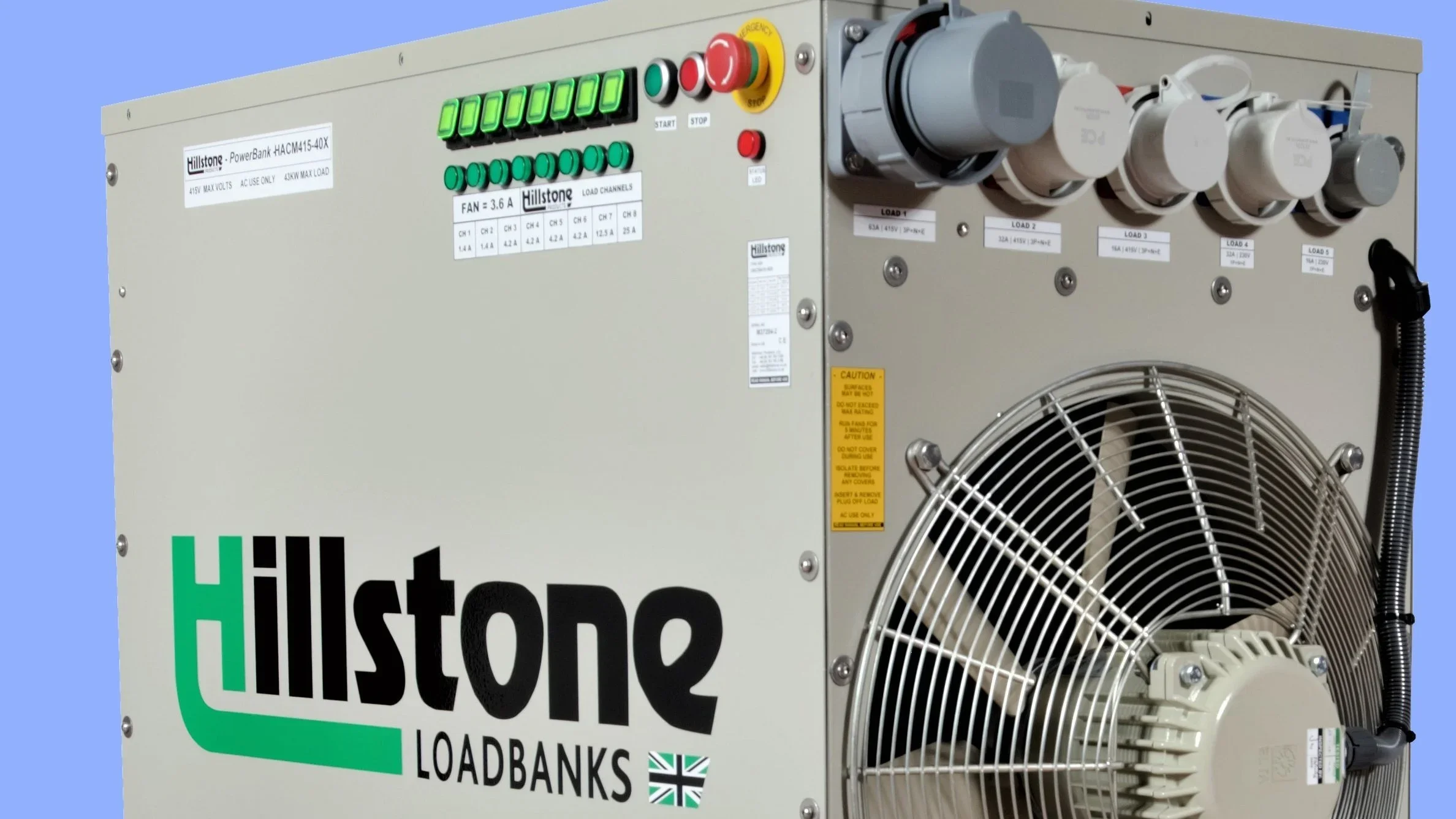

AC Load Banks
The HAC portable AC load bank range allowing for testing of single & three phase UPS systems and small generators.
The HACM portable AC load bank range are small, lightweight and low cost, indoor rated loads for single phase 240V AC 30kW, three phase 415V AC 30kW 50/60Hz.
240V Single Phase 30kW 125A Load Bank
415V Three Phase 30kW 42A Load Bank
The HAC AC load bank range outdoor rated, handheld controlled, three phase load banks for 400V/415V AC 40kW upto 550kW 50/60Hz.
415V Three Phase 40kW to 500kW
Outdoor Rated Load Banks
DC Load Banks
The HBN DC load bank range provides a low cost naturally cooled & manually controlled constant current solution for DC battery testing.
HBN Voltage range: 12V, 24V, 48V
HBN Current ratings: up to 600A
HBN30 DC Load bank 30V DC 300A to 600A
HBN60 DC Load bank 60V DC 300A to 600A
The HLB DC load bank range offer a dual voltage high powered & manually controlled constant current solution to portable load bank testing.
HLB Voltage range: 12V, 24V, 48V, 120V, 240V, 480V
HLB Current ratings: up to 600A
DC Load bank 65V DC 500A / 130V 250A 32kW
DC Load bank 65V DC 600A / 130V 300A 40kW
DC Load bank 130V DC 450A / 260V 225A 58kW
DC Load bank 130V DC 600A / 260V 300A 78kW
DC Load bank 260V DC 223A / 520V 112A 58kW
DC Load bank 260V DC 300A / 520V 150A 78kW
